Mesin Pembuat Tepung Jagung Bertenaga Listrik Pipa Pengering Tabung Bundel
Detail produk:
| Place of Origin: | Zhengzhou City,China |
| Nama merek: | JINGHUA |
| Sertifikasi: | CE |
| Model Number: | GZG60 GZG100 GZG150 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 Set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days |
| Syarat-syarat pembayaran: | L / C, D / P, T / T |
| Menyediakan kemampuan: | 20 set/bulan |
|
Informasi Detail |
|||
| Application: | corn starch dryer machine | Kekuasaan: | 7.5 KW |
|---|---|---|---|
| Berat badan: | 9000 Kg | Energi: | Listrik |
| Kondisi: | Baru | Instalasi: | Ya |
| Mempertahankan: | Ya | Garansi: | 12 bulan |
| Menyoroti: | mesin tepung jagung,mesin pengolahan tepung jagung |
||
Deskripsi Produk

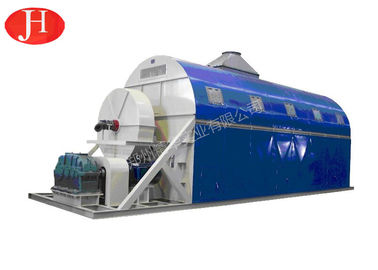

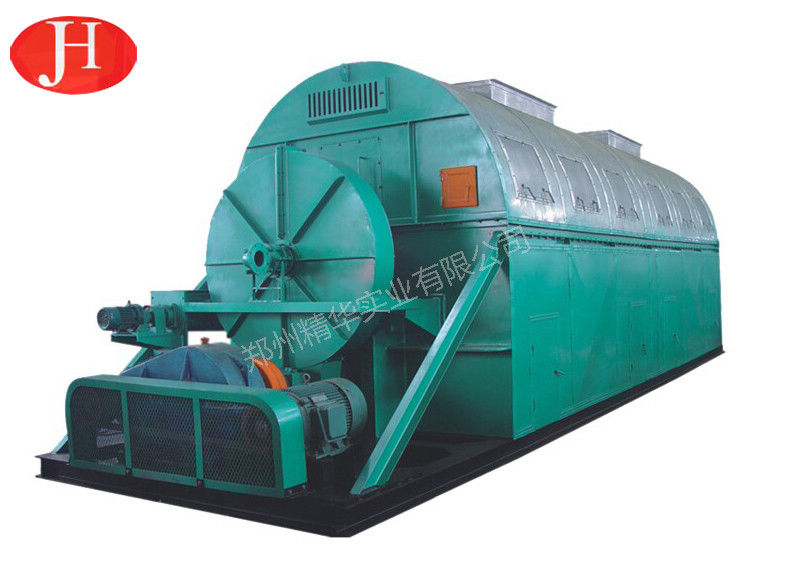

Large Capacity Pipe Bundle Dryer Corn Starch Dry Making Machine
Product Description
Pipe bundled tube dryer is an indirect heating dryer. It may operate either on countercurrent or down current principals. It can be widely applied in corn starch processing just like drying corn germ, cornfiber and corn protein.The machine has virtues of low steam consumption, big production quantity, low noise and less occupied area.
Main Features of Pipe Bundle Dryer
1. Using the principle of heat conduction and radiation, the material is transported into the dryer by screw.
2. The steam direction is opposite to the material direction, the energy saving effect is good, in the starch industry used for drying germ, fiber, gluten.
3. Under the agitation of rotating tube bundle copying plate, it moves from the feeding end to the feeding end, and absorbs heat and loses water during the movement. The dryer is in a negative pressure state during production.
Main Technical Parameters
| Materials | Germ | Corn fiber | Corn protein |
| Inlet water content | 55% | 60% | 45% |
| Outlet water content | 3~5% | 10~12% | 12~13% |
| Drying intensity (evaporation water kg/ m2) | 2.5~3 | 4.8 | 4.7 |
| Model | Outline dimension(mm) | Power(kw) | Weight (T) |
| GZG60 | 6100*1600*2160 | 5.5 | 9 |
| GZG100 | 7800*1900*2460 | 7.5 | 13.5 |
| GZG150 | 7100*2200*2750 | 11 | 19.5 |
Product Show
Company Information
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 10 invention patents.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
