Ubi Jalar Ubi Jalar Pati Line Produksi Mesin Pabrik Rasper
Detail produk:
| Place of Origin: | Zhengzhou City,China |
| Nama merek: | JINGHUA |
| Sertifikasi: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 DCM1070 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 Set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Kemasan rincian: | Sesuaikan kotak kayu sesuai dengan ukuran produk ， Setiap wadah dapat menampung 4-6 potong produk |
| Delivery Time: | 14-30 work days |
| Syarat-syarat pembayaran: | L / C, D / P, T / T |
| Menyediakan kemampuan: | 20 set/bulan |
|
Informasi Detail |
|||
| Application: | Starch production line | Bahan: | besi tahan karat |
|---|---|---|---|
| Kondisi: | Baru | Energi: | Listrik |
| Instalasi: | Ya | Mempertahankan: | Ya |
| Useful life: | 15 years | Capacity: | 20-45 t/h |
| Menyoroti: | lini produksi pati jagung,jalur pengolahan pati singkong |
||
Deskripsi Produk

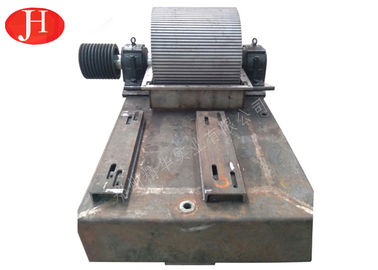

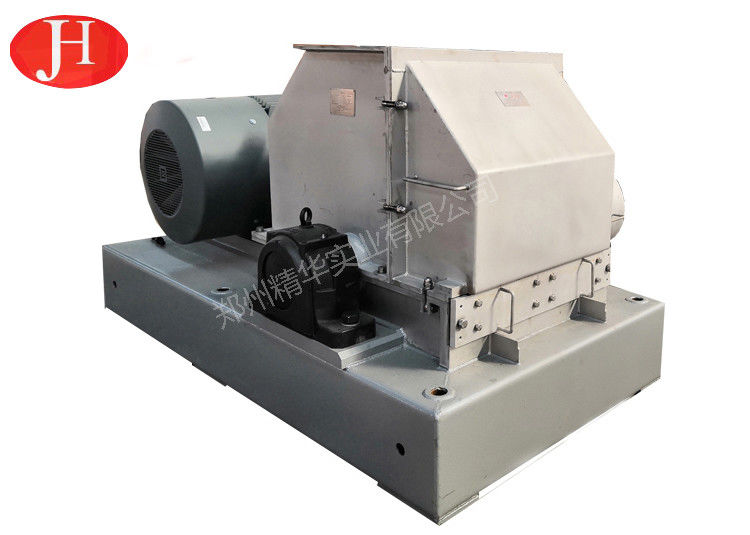

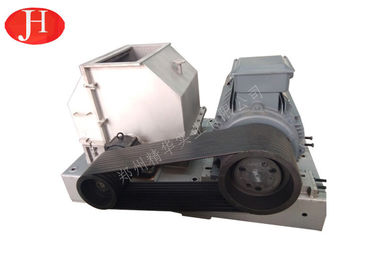

Potato Cassava Sweet Potato Starch Production Line High Quality Rasper Mill Machine
Product Description
Starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal tissue is not easy to destroy, the use of the rasper repeatedly grinding, fully destroy the tissue structure of the potato, can make the small starch particles from the root of the free, improve the rate of starch extraction.
Key Technology & Innovation Potions
1. Engine base props up all components, which rotor and bearings are all fixed on.
2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
4. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Our Service Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
