Mesin Penggiling Tepung Stainless Steel Rasper Kapasitas Besar Operasi Mudah
Detail produk:
| Place of Origin: | Zhengzhou City,China |
| Nama merek: | JINGHUA |
| Sertifikasi: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 Set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Syarat-syarat pembayaran: | L / C, D / P, T / T |
| Menyediakan kemampuan: | 20 set/bulan |
|
Informasi Detail |
|||
| Application: | Starch making grinder machine | Energi: | Listrik |
|---|---|---|---|
| Kondisi: | Baru | Pengepakan: | kasus kayu |
| Capacity: | 33 t/h | Kekuasaan: | 110 KW |
| Instalasi: | Ya | Voltage: | 220V or 380V |
| Menyoroti: | corn starch production line,cassava starch processing linefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en' |
||
Deskripsi Produk
Large Capacity Stainless Steel Rasper Starch Grinder Production Line
Product Description
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.
Structure introduction

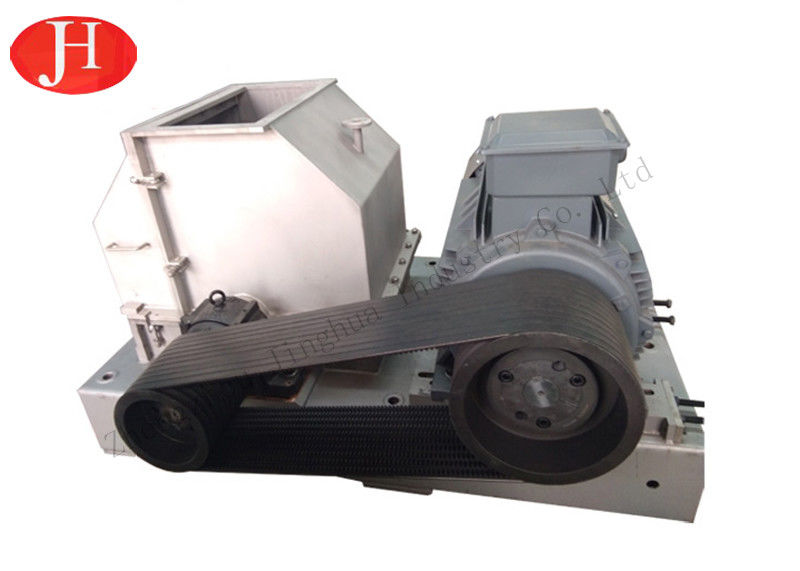

Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.

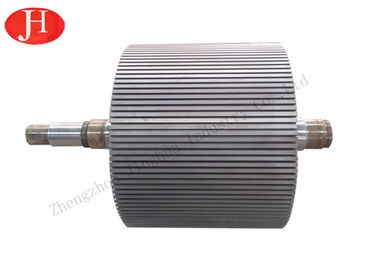

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade. .
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.
7. Use Sweden SKF Bearings and German opittle belt.
8. Motor drives rotor by belt, which is protected by sealed protective cover.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery :14days after receiving pre-payment (on time according to contract strictly).
