Plat Dan Bingkai Filter Press Peralatan Produksi Glukosa Dehidrasi
Detail produk:
| Place of Origin: | Zhengzhou City,China |
| Nama merek: | JINGHUA |
| Sertifikasi: | CE |
| Model Number: | XG60-120/1000-30U XG30-80/870-30U |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 Set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days |
| Syarat-syarat pembayaran: | L / C, D / P, T / T |
| Menyediakan kemampuan: | 20 set/bulan |
|
Informasi Detail |
|||
| Application: | Glucose production machine | Keuntungan: | kualitas tinggi |
|---|---|---|---|
| Garansi: | 12 bulan | Energi: | Listrik |
| Berat badan: | 4100 kg | Voltage: | 220V or 380V |
| Capacity: | 10 t/h | Packing: | Wooden Case / Customed |
| Menyoroti: | mesin pengolah glukosa,mesin pengolah glukosa |
||
Deskripsi Produk

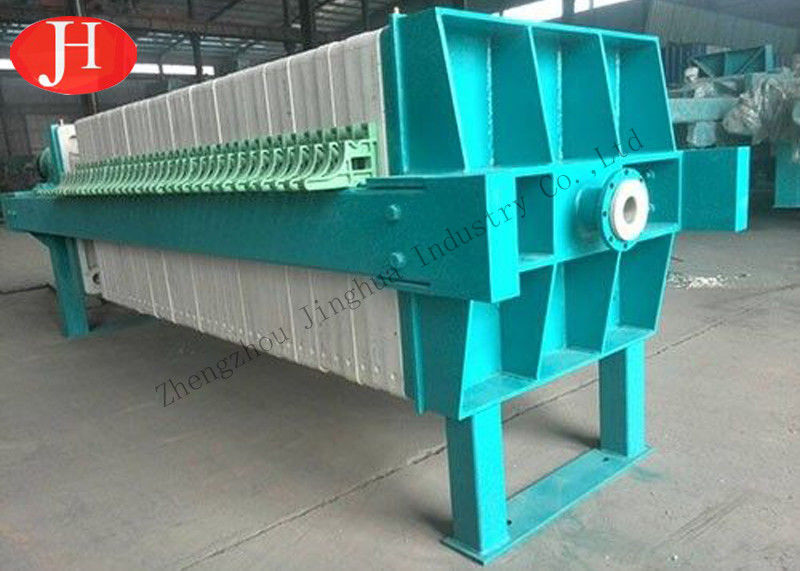

Plate And Frame Filter Press Glucose Dehydration Production Equipment
Product Description
Application of box filter press
Box filter press is widely used in cassava flour production lines. Broken cassava slurry is pumped into box filter press by screw pump to dehydrate. Dehydrated cassava flour cake reaches 40-45% in moisture, while low moisture reduces power consumption in drying section. That just makes it excellent equipment for dehydration.
Box filter press is also widely used in starch sugar processing industry, including decoloring and protein separation section. In one word, box filter press can be widely used in starch and starch further processing industry.
Features of box filter press
1. Compression type: hydraulic compression and mechanical compression;
2. Texture: polypropylene;
3. Long service life;
4. Corrosion Resistant;
5. Light in weight;
6. Easy to operate and maintain.
Main Technical Parameters
| Model | Filter Area (m2) | Size of filter plate (m) | Working Pressure (MPa) | Motor Power (kW) | Boundary Dimension (m) | Weight (Ton) |
| XG60-120/1000-30U | 60-120 | 1000*1000 | 0.6 | 4.0 | 4.2-7.2*1.5*1.4 | 4.1-7.6 |
| XG30-80/870-30U | 30-80 | 870*870 | 0.6 | 2.2 | 3.4-5.6*1.5*1.4 | 3.0-5.6 |
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
