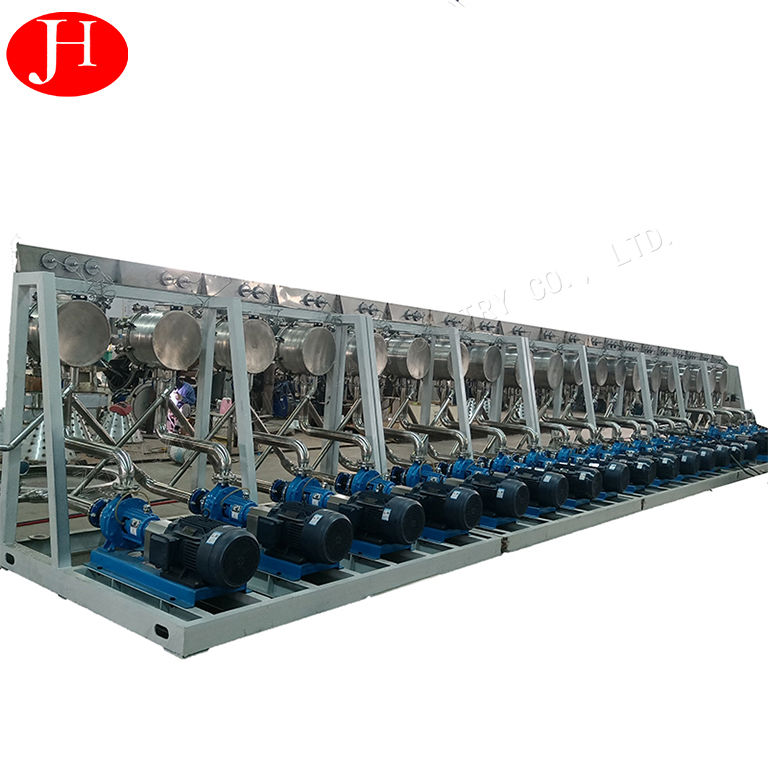

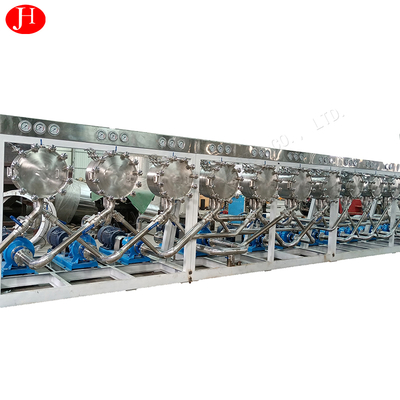

Customized Corn Starch Production Line for Hydrocyclone Equipment Production Line
Detail produk:
| Tempat asal: | Henan |
| Nama merek: | JingHua |
| Nomor model: | Hidrosiklon |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | Dapat dinegosiasikan |
| Kemasan rincian: | 3000*1590*1500 mm |
| Waktu pengiriman: | 10 hari kerja |
| Syarat-syarat pembayaran: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Menyediakan kemampuan: | 10 |
|
Informasi Detail |
|||
| Model kerja: | Kontinu | Bahan mentah: | Jagung |
|---|---|---|---|
| Keuntungan: | Kapasitas besar | Layanan purna jual: | Insinyur tersedia untuk mesin layanan di luar negeri |
| Instalasi: | proyek turnkey | Sistem Kontrol: | Kontrol PLC |
| Jenis: | Mesin pengolah makanan | Garis: | Lini Produksi Tepung Jagung |
| Sedang mengemas: | Kotak Kayu / Dikustomisasi | Pengolahan: | Operasi yang mudah |
| Operasi: | Otomatis | Pelabuhan Pengiriman: | Qingdao, Cina |
| Nilai otomatis: | Sepenuhnya otomatis | Aplikasi: | Industri Makanan, Industri Kertas, Industri Tekstil, Industri Farmasi |
| Menyoroti: | customized corn starch production line,hydrocyclone starch production equipment,corn starch processing line with warranty |
||
Deskripsi Produk
With compact structure, high precision, as well as good sealing effect, is widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley (m) starch, andmodifiedstarch.
Main technical parameters
|
Model |
XL325 |
XL438 |
XL516 |
XLS426 |
|
|
Plate quantity |
1 |
1 |
1 |
2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
|
Cylinder diameter(mm) |
362 |
438 |
516 |
426 |
|
|
Cylinder norm(mm) |
10,15 |
10,15 |
10,15 |
10,15 |
|
|
Feed Pressure(MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Inlet Size(mm) |
76 |
89 |
89 |
2* 89 |
|
|
Underflow Size(mm) |
48 |
48 |
57 |
76 |
|
|
Top flow Size(mm) |
57 |
57 |
76 |
2- 57 |
Advantages of hydrocyclone separator
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced surface treatment craft. Oil and dirty resisting.
3. Widely used for starch extraction in starch processing plants.
4. Multifunction of concentration, recovery, washing and separation for hydrocyclone group.
5. Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
6. Hydroclone designing is adopted to get better starch separation according to the features of different material.
7. Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
8. Special sealing design, friendly operation.
Working principle
Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force. And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
Zhengzhou Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory,Can ensure the processing and delivery cycle,engineering and technical personnel more than 30 people, can provide installation services overseas and custom product for you.Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.Can provide high quality products for you.
Our Factory
Our Workshop
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
